Why textile ducts?
Textile ducts are very well-suited for efficient, uniform, and draught-free distribution of fresh air without "dead zones".
Read more about textile ductworkKE-DireJet® Nozzle Fabric duct
As a result of this, both the throw length and thermal penetration length are extended considerably for KE-DireJet Fabric Duct.
KE Fibertec is the only distributor of textile ducts to offer five different nozzle sizes: Ø12, Ø18, Ø24, Ø48 and Ø60 mm.
Flexibility in the choice of nozzle sizes offers significant benefits as the KE-DireJet System can be used in virtually every type of building that requires mixing ventilation, even in extremely large premises, such as large sports stadiums or high-bay warehouses.
Conical nozzles are pressed into holes in a coated polyester fabric. They are secured using a locking ring. The maximum number of nozzles per row per metre of duct is 14 for the Ø12, Ø18 and Ø24 mm nozzles. If this is not sufficient, it is recommended using two or more rows of nozzles, the whole circumference of the duct can be utilised for nozzle placement.
In the case of the Ø48 mm and Ø60 mm nozzles, it is recommended to use a maximum of six nozzles per metre. As the number of nozzles per metre is increased, the individual jets will have an impact on each other and they will change character from circular jets to 2-dimensional jets. The pace of velocity decrease will also slow down as the induction of room air is limited the closer the nozzles are placed together, this could affect our lab verified velocity calculations
Typical applications for Direjet fabric duct, Warehouses, Supermarkets, Sports Areas, Swimming Pools
Order our catalogue below to read more about the KE-DireJet system.
Order our catalogue for further information
DireJet smoke simulation

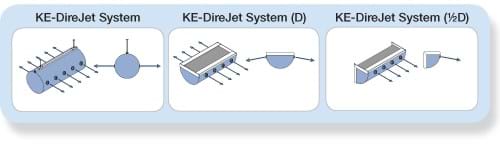

From a ventilation technology perspective, the KE-DireJet System can be regarded as an active high impulse system for mixing ventilation.
Suspension
Single Row Suspension
Double Row Suspension "Safetrack"
Contact us for more information
Triple Row Suspension "Safetrack"
Contact us for more information
Single Row Suspension "Safetrack int-arch"
Contact us for more information
Double Row Suspension "Safetrack ext-arch"
Contact us for more information
Single Row Suspension "Safetrack 360°"
Contact us for more information
Single Row Suspension Wire
Contact us for more information
Double Row Suspension Wire
Contact us for more information
D-Lite Alu
Contact us for more information
D-Alu
Contact us for more information
Safetrack Arches
Safetrack Dual Arch
Dual Arch mounting brackets feature the stability of double rails but at the same time are quick and easy to install.
Large textile ducts will be firmly suspended both with and without the air turned on and installation time is reduced considerably as the ducts are mounted in a single ceiling rail.
The frame system can be constructeed on the floor then lifted up to high level.
Safetrack Duct Arch
Duct Arch is a pre-bent aluminium rail mounted in hidden sewn-in pockets in the TBV ducts. The hidden Arches reduce sagging when the air is off to prevent snagging on other services. It also and prevent popping if no soft-start is used.
The unique Safetrack is designed in a way so that the Arch brackets are easily clicked onto the ceiling rail without any tools.
Safe 360° Arch
The Safe 360° system consists of removable steel rings fitted every 1000 mm or 500 mm. The stainless steel rings are secured with velcro inside the ducts at 12, 3, 6 and 9 o'clock so they can easily be removed for washing.
The ducts will keep looking inflated, this is our best solution if a soft start cannot be fitted.
Curved textile ducts
We are able to offer curved textile ducts designed for a specific radius and with Safetrack rails that follow the shape of the duct. This product can be combined with both ordinary passive low impulse systems and with our hybrid solution in which the low impulse system is made with lasercut inject holes.
A good example is the system that KE Fibertec supplied to Algida Unilever's main office in Istanbul.
Mount Easy
For systems with difficult access, for instance in swimming pool areas where the TBV systems are suspended above the pool KE Fibertec offers a solutions with cord pull called Mount Easy. The Mount Easy system enables a single person to install textile ducts of up to 40 metres from one end.
This system is also useful when rails need to be installed when the area is dity, the ducts can be installed at a later date when the area is clean.
Coloured suspension rails
Specific types of suspension systems are now also available in any given colour. All visible parts are powder coated in a high impact-resistant quality finish.
KE Fibertec recommends the D-Lite Alu® rail for D-shaped systems with dimensions up to D800 mm.
The rail is produced very simply and facilitiates fitting on level false ceilings. This rail is used to provide a competitive edge as an alternative to D-shaped systems in premises where the finish and appearance have high priority. This type of rail is also suitable where access is difficult.
KE Fibertec recommends the D-Alu rail in premises where the finish and appearance have high priority, as well as for D-shaped ducts with bends and sharp elbows. The specially developed closing system is ideal for use in both horizontal and vertical systems. The D-Alu rail is suitable where access is difficult.
The wire suspension system is the most simple of the various suspension systems offered by KE Fibertec. Nowadays the wire solution is used almost exclusively for round ducts in particularly humid environments. Single wire suspension is used most often with duct dimensions under Ø630 mm. Double wire suspension is used most often with duct dimensions over Ø630 mm.
