What is an Impulse System?

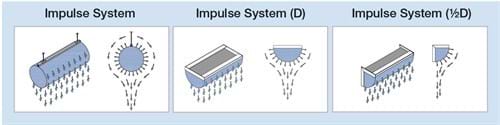

The Impulse System is produced using round ducts (Ø), while the Impulse D and ½D Systems are produced using half-round (D), or quarter round (½D) ducts.

The air distribution principle for horizontal low impulse systems is based on passive thermal displacement where the air is supplied at a lower temperature in relation to the air in the room.

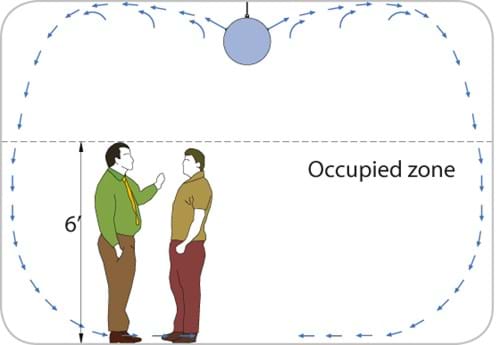

Because of the difference in density, with the cooled air being heavier than the warmer air in the room, the room air is displaced below the duct while the supply air continues moving towards the floor.

The air flow in the room is then based on natural air movements where the air is driven by the difference in density and convection streams from heat-releasing activities and processes, hence the term "passive thermal displacement."

A high level of heat activity from heat sources generates bigger convection currents, resulting in the air rising more strongly and greater entrainment of the air around the source. This then results in stratification in the ventilated room where heat and pollution are drawn away from the occupied zone and extracted under the ceiling.

A low impulse system can only be used for cooling purposes or for distributing large volumes of isothermal air, as warm air will settle under the ceiling like a blanket. When this happens, the supply air is short circuited, which means a waste of energy.





Read more about the Impulse System - or order our catalog below.

Order our catalog for further information

Low impulse smoke simulation

The air distribution principle for horizontal low impulse systems is based on passive thermal displacement where the air is supplied at a lower temperature in relation to the air in the room.

Suspension

  • Single Row Suspension

    Contact us for more information

  • Double Row Suspension "Safetrack"

    Contact us for more information

  • Triple Row Suspension "Safetrack"

    Contact us for more information

  • Single Row Suspension "Safetrack int-arch"

    Contact us for more information

  • Double Row Suspension "Safetrack ext-arch"

    Contact us for more information

  • Single Row Suspension "Safetrack 360°"

    Contact us for more information

  • Single Row Suspension Wire

    Contact us for more information

  • Double Row Suspension Wire

    Contact us for more information

  • D-Lite Alu

    Contact us for more information

  • D-Alu

    Contact us for more information

Safetrack Arches


Safetrack Dual Arch

Dual Arch mounting brackets utilize the stability of double rails and are simultaneously quick and easy to install. Large fabric ducts will be stably suspended both with and without air, and installation time is reduced considerably as the ducts are mounted in a single ceiling rail.

Safetrack Duct Arch
Duct Arch is a pre-bent aluminum rail mounted in hidden sewn-in pockets in the fabric ducts. The Arches reduce sagging when the air is off and prevent popping with ON-OFF start. The unique Safetrack is designed in a way so that the Arch brackets are easily clicked onto the ceiling rail without any tools.

Safe 360° Arch
The Safe 360 system consists of removable rings per 40" or 20". The stainless steel rings are locked with velcro (12, 3, 6 and 9 o'clock) inside the ducts so that they can easily be removed for washing.

The ducts will keep looking inflated, and it is our best solution if popping is a big problem.

Read more

Curved fabric ducts

Product development of the TBV design now enables us to offer curved fabric ducts designed for a specific radius and with Safetrack rails that follow the shape of the duct. This product can naturally be combined with both ordinary passive low impulse systems and with our hybrid solution in which the impulse system is made with lasercut inject holes.

A good example of the versatility of KE Fibertec fabric duct systems is shown below.



Mount Easy

For systems with difficult access, like in swimming pool areas where the duct systems are suspended above the pool, KE Fibertec offers solutions with a cord pull called Mount Easy. The Mount Easy system enables a single person to install fabric ducts of up to 130' from one end.




Colored rails

Specific types of suspension systems are now also available in any given color. All visible parts are powder-coated in a high impact-resistant quality.
