Why textile ducts?

Textile ducts are very well-suited for efficient, uniform, and draught-free distribution of fresh air without "dead zones".

Read more about textile based ventilation

What is a KE-Inject® System?

From a ventilation technology perspective, the KE Inject System can be regarded as an active high impulse system for mixing ventilation.

The KE-Inject System, unlike its low impulse counterpart, can be used for cooling, ventilation and heating.

The reason for this is that KE Fibertec's high impulse systems, unlike its low impulse systems, are less dependent on external effects, such as convective heat currents in the room.





The supply air is delivered with high initial energy in the form of velocity (momentum) through holes or nozzles, with the effect that the air is discharged into the room instead of being distributed through a textile surface at low velocity.

KE Fibertec markets three types of KE-Inject Systems, with their characteristic patented hole design running along the duct's longitudinal surface. The systems are called KE Inject Low Velocity, KE-Inject Medium Velocity and KE-Inject JET.

Adjustments of the hole design enables KE Fibertec to control the air flow very precisely. For short throw lengths and a high degree of mixing, a KE-Inject Low Velocity System with large spacing between the groups of holes is applied.

If the air must travel a longer distance, the KE Inject JET System with small spacing between the holes is applied.

Order our catalogue below to read more about the KE-Inject System.

Order our catalogue for further information

This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.

Inject smoke simulation

From a ventilation technology perspective, the KE Inject System can be regarded as an active high impulse system for mixing ventilation. The KE-Inject System, unlike its low impulse counterpart, can be used for cooling, ventilation and heating.

Suspension

  • Single Row Suspension

    Contact us for more information

  • Double Row Suspension "Safetrack"

    Contact us for more information

  • Triple Row Suspension "Safetrack"

    Contact us for more information

  • Single Row Suspension "Safetrack int-arch"

    Contact us for more information

  • Double Row Suspension "Safetrack ext-arch"

    Contact us for more information

  • Single Row Suspension "Safetrack 360"

    Contact us for more information

  • Single Row Suspension Wire

    Contact us for more information

  • Double Row Suspension Wire

    Contact us for more information

  • D-Lite Alu

    Contact us for more information

  • D-Alu

    Contact us for more information

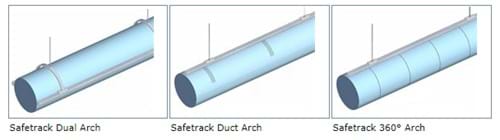

Safetrack Arches


Safetrack Dual Arch

Dual Arch mounting brackets utilize the stability of double rails and at the same time they are quick and easy to install.

Large textile ducts will be stably suspended both with and without air and installation time is reduced considerably as the ducts are mounted in a single ceiling rail.

Safetrack Duct Arch

Duct Arch is a pre-bent aluminium rail mounted in hidden sewn-in pockets in the TBV ducts. The Arches reduce sagging when the air is off and prevent popping with ON-OFF start.

The unique Safetrack is designed in a way so that the Arch brackets is easily clicked onto the ceiling rail without any tools.


Safe 360° Arch

The Safe 360° system consists of removable rings per 1000 mm or 500 mm. The stainless steel rings are locked with velcro (12, 3, 6 and 9 o'clock) inside the ducts so that they can easily be removed for washing.

The ducts will keep looking inflated, and it is our best solution if popping is a big problem.

Read more

Curved textile ducts

Product development of the TBV design now enables us to offer curved textile ducts designed for a specific radius and with Safetrack rails that follow the shape of the duct. This product can naturally be combined with both ordinary passive low impulse systems and with our hybrid solution in which the low impulse system is made with lasercut inject holes.

A good example i below system that KE Fibertec supplied to Algida Unilever's main office in Istanbul.



Mount Easy

For systems with difficult access, for instance in swimming pool areas where the TBV systems are suspended above the pool KE Fibertec offers a solutions with cord pull called Mount Easy. The Mount Easy system enables a single person to install textile ducts of up to 40 metres from one end.




Coloured rails

Specific types of suspension systems are now also available in any given colour. All visible parts are powder coated in a high impact-resistant quality.




SafeSlider - combi solution for rails and wire

Clips and glider in the same stable solution. The SafeSlider is turnable if you want to change from rail to wire or vice versa. Fits other types of rails - also other makes and it is available in different colours.




Read more about SafeSlider

SafeStretch - Perfect hanging ducts, with or without air

With the SafeStretch solution your textile duct system will always look round and inflated both with or without air pressure.



Read more about SafeStretch
